A1 offers wide range of screw compressors, Capacity : 10 HP – 500 HP
Our specialty is to serve to the clients an excellent quality, process friendly range of screw compressors at the most cost effective prices. We give pre engineering support by study well about the brief utility clearly and analyze it properly with mutual discussion and help the client to understand why this model of screw compressors is best for him.
A1 always believe in value addition in screw compressors to make it more safe, reliable and efficient with increased compliance with international standards of quality.
A-1 offers best quality rotary screw compressors. Screw compressor is the right choice, when air application is advance, air flow requirement is sizable and noise is of concern. It gives constant high flow at required pressure.

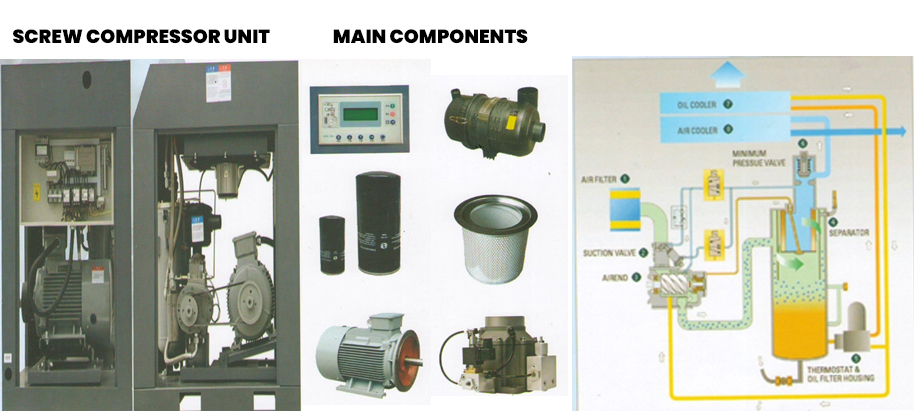

In screw compressor, the atmospheric air enters through inlet of 3 micron suction filter in to the screw compressor. In A-1 Screw compressor, a pair of two unequal screws rotors of special curved profiles rotates at very high speed in opposite to each other’s direction placed in an oil sump to compress the air to generate the required pressure.
The oil air separator effectively allows only air to pass through it and oil returns back to sump store of Screw compressor. Here, In Rotary Screw compressor, no direct metal to metal contact is an added feature for very low noise level.
These Screw compressors are high tech product with advance electronics controls.
Technical Data
Volume Range : 3 H.P to 500 H.P
Working Pressure Range : 7 / 10 / 13 Kg/cm2
Options in Type : (1) Oil free (2) Receiver mounted (3) Standalone (4) Combined with air dryer
Advantages
- The silent and vibration free unit
- More air supply per unit of power used.
- The preventive care signals guides user in advance to change the required consumable
parts in time.
INDUSTRIAL ROTARY SCREW COMPRESSOR PACKAGES
Each Package includes: Air Compressor, Air Receiver, Auto-drain ,5 micron Pre-filter, Refrigerated Air Dryer , 1 micron After-filter.
